Permanent Magnet Frequency Conversion Water Pumps Vs Ordinary Water Pumps: A Comprehensive Guide To Understand The Differences

Permanent Magnet Frequency Conversion Water Pumps (PMFCWP) and Ordinary Water Pumps serve the common purpose of moving water from one place to another. Still they employ different technologies and exhibit distinct characteristics.

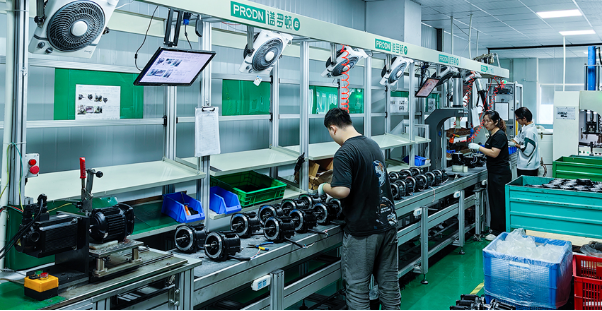

Water pumps are essential in various applications, from irrigation and industrial processes to residential water supply and HVAC systems. Among the miscellaneous range of water pumps available, Permanent Magnet Frequency Conversion Water Pumps (PMFCWPs) and Ordinary Water Pumps stand out as two distinct technologies, each with benefits and limitations. This comprehensive study will explore the differences between PMFCWP and Ordinary Water Pumps across various features, including motor technology, energy efficiency, control and performance, budget, maintenance, and noise/vibration levels. PRODN is a water pump manufacturing company and an R&D company trying to find various innovative ways to pave a remarkable place in the global market. We are a world-class innovator and producer of inverter pump technology. We provide the standard in the variable frequency water pump industry, offering all services, including Prodn branding, ODM, OEM and many more.

Permanent Magnet Motor: An indispensable part of Permanent Magnet Frequency Conversion Water Pumps (PMFCWPs)

Permanent Magnet Motor is a type of Synchronous electric motor. Synchronous electric motor is an AC electric motor, in which, at steady state, the rotation of the shaft is synchronized with the frequency of the supply current; the rotation period is exactly equal to an integer number of AC cycles. Synchronous motors use electromagnets as the stator of the motor which create a magnetic field that rotates in time with the oscillations of the current. The rotor with permanent magnets or electromagnets turns in step with the stator field at the same rate and as a result, provides the second synchronized rotating magnet field.

A permanent-magnet synchronous motor (PMSM) uses permanent magnets embedded in the rotor to create a constant magnetic field. The stator carries windings connected to an AC electricity supply to produce a rotating magnetic field (as in an asynchronous motor). At synchronous speed the rotor poles lock to the rotating magnetic field. PMSMs are similar to brushless DC motors. Neodymium magnets are the most common, although rapid fluctuation of neodymium magnet prices triggered research in ferrite magnets. Due to inherent characteristics of ferrite magnets, the magnetic circuit of these machines needs to be able to

concentrate the magnetic flux; typically leading to the use of spoke type rotors. Machines that use ferrite magnets have lower power density and torque density when compared with neodymium machines.

Most PMSMs require a variable-frequency drive to start them. However, some incorporate a squirrel cage in the rotor for starting—these are known as line-start or self-starting. These are typically used as higher-efficiency replacements for induction motors (owing to the lack of slip), but must ensure that synchronous speed is reached and that the system can withstand torque ripple during starting. PMSMs are typically controlled using direct torque control and field oriented control.

What is Ordinary Water Pumps?

Ordinary Water pumps use an ordinary motor, a so-called power-frequency motor, to drive the water pump to rotate. The frequency we use every day is 50Hz, and the speed is not adjustable.

Differences between Permanent Magnet Frequency Conversion Water Pumps (PMFCWPs) and Ordinary Water Pumps

1.Construction Principles
PMFCWPs are equipped with Permanent Magnet Synchronous Motors (PMSMs), a cutting-edge technology that offers several advantages over the conventional induction motors typically found in Ordinary Water Pumps. PMSMs utilize permanent magnets in the rotor, which leads to higher efficiency and power density compared to induction motors. The absence of rotor windings in PMSMs also reduces electrical losses, resulting in improved energy efficiency.
In contrast, Ordinary Water Pumps commonly utilize asynchronous induction motors. While induction motors are robust and reliable, they are inherently less efficient than PMSMs, particularly at partial loads and varying speeds. This technological disparity sets the stage for differences in energy consumption and operational performance between the two types of pumps.

2.Energy Efficiency
One of the most noteworthy differences between PMFCWPs and Ordinary Water Pumps lies in their energy efficiency. PMFCWPs, with their PMSM technology and frequency conversion capability, outshine in this aspect. By fine-tuning the pump’s speed according to the demand through frequency conversion, PMFCWPs optimize energy consumption, leading to considerable energy savings over time. This dynamic operation guarantees that the pump operates at its most efficient point across fluctuating load conditions, thereby reducing wasted energy and lowering operational costs.
In contrast, Ordinary Water Pumps operate at a fixed speed and lack the facility to adapt to fluctuating demand levels. As a result, they tend to consume a constant amount of power regardless of the actual requirement, leading to inefficiencies, especially during periods of low demand. While induction motors are known for their consistency, they fall short in terms of energy efficiency compared to PMSMs with frequency conversion technology.
3.Control and Performance
PMFCWPs offer more control and performance competences compared to Ordinary Water Pumps. The ability to adjust the pump’s speed and flow rate in real-time allows PMFCWPs to accurately match the required output, ensuring optimal performance under fluctuating operating conditions. Whether it’s maintaining consistent pressure in a plumbing system or delivering water for agricultural irrigation, PMFCWPs can adapt quickly to changes in demand, thereby enhancing system reliability and performance.
On the other hand, Ordinary Water Pumps struggle to attain the same level of precision and flexibility in control. With fixed-speed operation, these pumps may experience difficulties in maintaining steady flow rates and pressure levels, particularly when faced with fluctuating demand or varying hydraulic conditions. This limitation can influence the overall efficiency and effectiveness of water distribution systems, leading to potential operational challenges and inefficiencies.

4.Maintenance
PMFCWPs generally need less maintenance paralleled to Ordinary Water Pumps, thanks to the resilience and consistency of PMSM technology. The absence of rotor windings and brushes in PMSMs diminishes the risk of mechanical wear and electrical faults, contributing to longer service intervals and lower maintenance costs. Moreover, the ability to operate at varying speeds enables PMFCWPs to moderate stress on components and extend their operational lifespan.
In contrast, Ordinary Water Pumps may require more frequent maintenance checks and servicing, mainly for components prone to wear and tear such as bearings, seals, and brushes in induction motors. The fixed-speed operation of these pumps can lead to higher mechanical stress and exhaustion on internal parts, necessitating proactive maintenance measures to safeguard continued performance and reliability.
